Prodways Machines CERAM PRO Ceramic 3D Printers

Keys & Benefits

High resolution and LED power:

The CERAM PRO 385 offers exceptional resolution with its 42 μm per pixel capability. This high-resolution output, combined with advanced LED power, ensures precise and detailed ceramic 3D printing, making it ideal for intricate applications requiring fine details and superior surface quality.

Modular Top-Down Build Platform:

The CERAM PRO 385 features a modular top-down build platform that can be adjusted according to the size of the build, accommodating dimensions from 75 x 40 mm to 300 x 445 mm. This flexibility allows users to efficiently customize the build volume to match specific project requirements, enhancing productivity and versatility in various applications

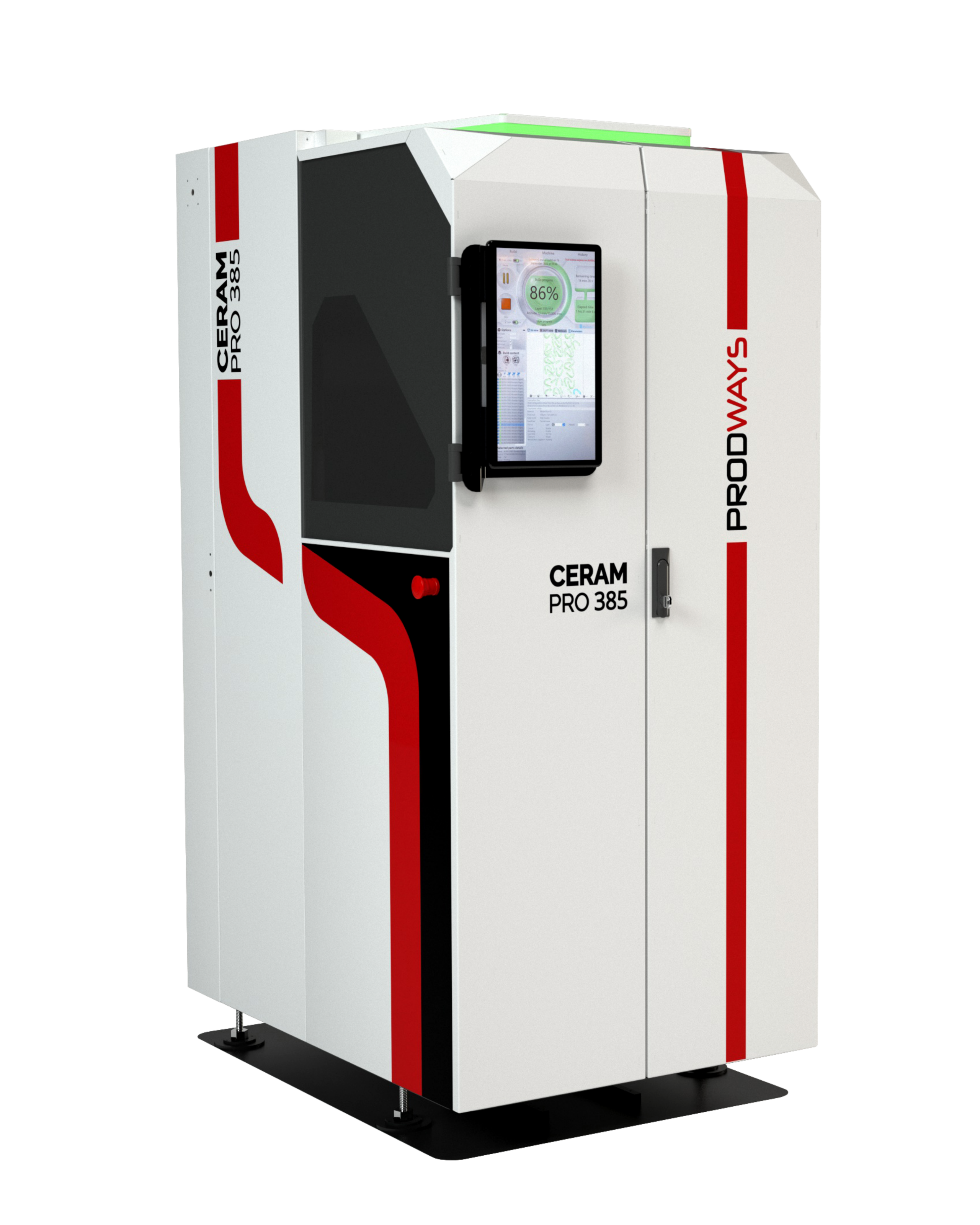

CERAM PRO 385 specifications

Number of DLP Heads

Single DLP head

Applications

Investment casting related applications/technical ceramics open for R&D

Technology

UV-LED DLP, wavelength 385 nm
(365 and 405 nm versions on demand)

Materials

Available for open materials

Max. Buil envelope size (LxLxH)

300 x 445 x 350 mm |10.3 x 12.9 x 13.7 inches.

Native pixel size (X, Y)

42 μm (0.0016 inches)

Layer thickness*

50 – 175 μm
0.001 to 0.006 inches

Platform type

Perforated metal platform

Build platform (LxW)

From 75 x 40 mm to 300 x 445 mm

Vat build heigh

Up to 350 mm – Starts as low as 500 mL initial fill

Printer size (LxLxH)

855 x 1100 x 1780 mm | 33.7 x 43.3 x 70.1 inches

Weight

510 Kg | 1125 lbs.

Power requirements

210 – 240 VAC, 8-12 A, 50/60 Hz

Projector Power

90mW/ cm² for 385nm

Available for open materials

Looking for a turnkey solution? Discover the materials developed for our ceram pro 365 with SINTX
