Prodways Machines_high-precision_dental-3d-printer_IDS

Key Features & Benefits

Outstanding Surface Finish

    With its cutting-edge technology, the printer delivers finely detailed and smooth surfaces, reducing the requirement for post-processing and guaranteeing top-notch results.

Rapid Production

    The DENTAL PRO 200 features dual DLP heads and operates at a wavelength of 405 nm, allowing for ultra-fast 3D printing. This innovation significantly decreases production times for dental models and enhances the efficiency of laboratory workflows.
Get a quote

    DENTAL PRO 200 Specifications

    DENTAL PRO 200 Specifications

    Number of DLP® Heads

    2 (up to +40% faster)

    Technology

    UV-LED DLP®, 405 nm wavelength

    Applications

    Aligners Models, Crown & Bridge models, Dentures, Trays, Orthodontics & Implantology models

    Materials Qualified

    Absolute Aligner, Provivic Denture Base, PLASTCure Modele 300/310/320 (non exhaustive list)

    Light Power **

    90 mW / cm²

    Max. Build envelope size (LxWxH)

    300 x 445 x 2350 mm | Customizable configuration possible based on needs

    Native pixel size (X, Y)

    42 μm (0.0016 inches)

    Layer thickness*

    50 – 175 μm (0.001 to 0.006 inches)

    Platform type

    Granite, perforated or metal platform

    Printer size (LxWxH)

    855 x 1100 x 1780 mm | 33.7 x 43.3 x 70.1 inches

    Weight

    510 Kg | 1125 lbs.

    Power requirements

    210 – 240 VAC, 8-12A, 50/60 Hz

    Download Data Sheet

    *Please note that this data is contingent upon factors including but not limited to part geometry, build style, and material. Variations in these elements may affect outcomes.

    **All technical characteristics, specifications, and data provided in this document are non-binding and subject to individual use cases and environmental conditions. Performance and results may vary based on these factors.

    Compatible materials

    View All

    🎥Immerse yourself in a video that unveils the magic of DENTAL PRO 3D printers and their applications in dentistry!

    From creating highly precise dental models to custom aligners and surgical guides, experience the future of dental innovation.

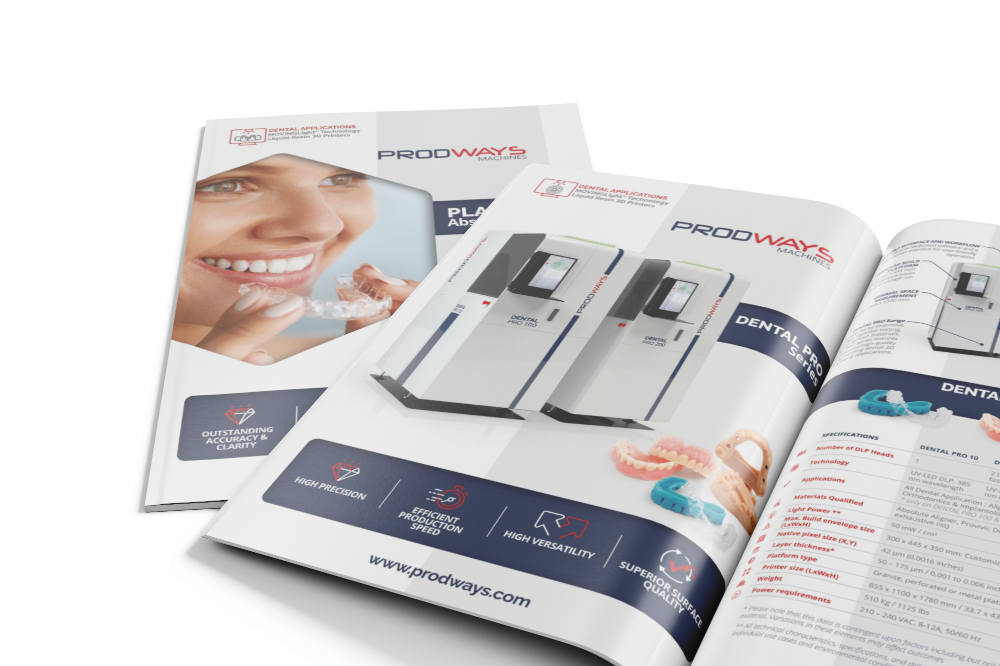

    Download the DENTAL PRO 200 datasheet

    Submit your contact details and explore the technical features of our range of dental 3D printer.

    Prodways Dental Pro 200 3D printer for producing custom orthodontic aligners using Plascture Absolute Aligner material.
