DENTAL PRO 20

Compact, Cost-Effective, and Specialized Single DLP head, 385 nm wavelength for specific dental applications)

The DENTAL PRO 20 features dual DLP® heads and an advanced 385 nm UV-LED system, delivering production speeds up to 40% faster than single-head models. With an industry-leading 300 x 445 mm build platform, it is the perfect choice for high-throughput dental labs.

Offering 600 DPI (42 μm per pixel) resolution and seamless integration with Prodways-certified materials, the DENTAL PRO 20 produces high-quality models such as aligners, trays, and large denture bases at scale while minimizing costs and post-processing.

Download Data sheet Get a quote

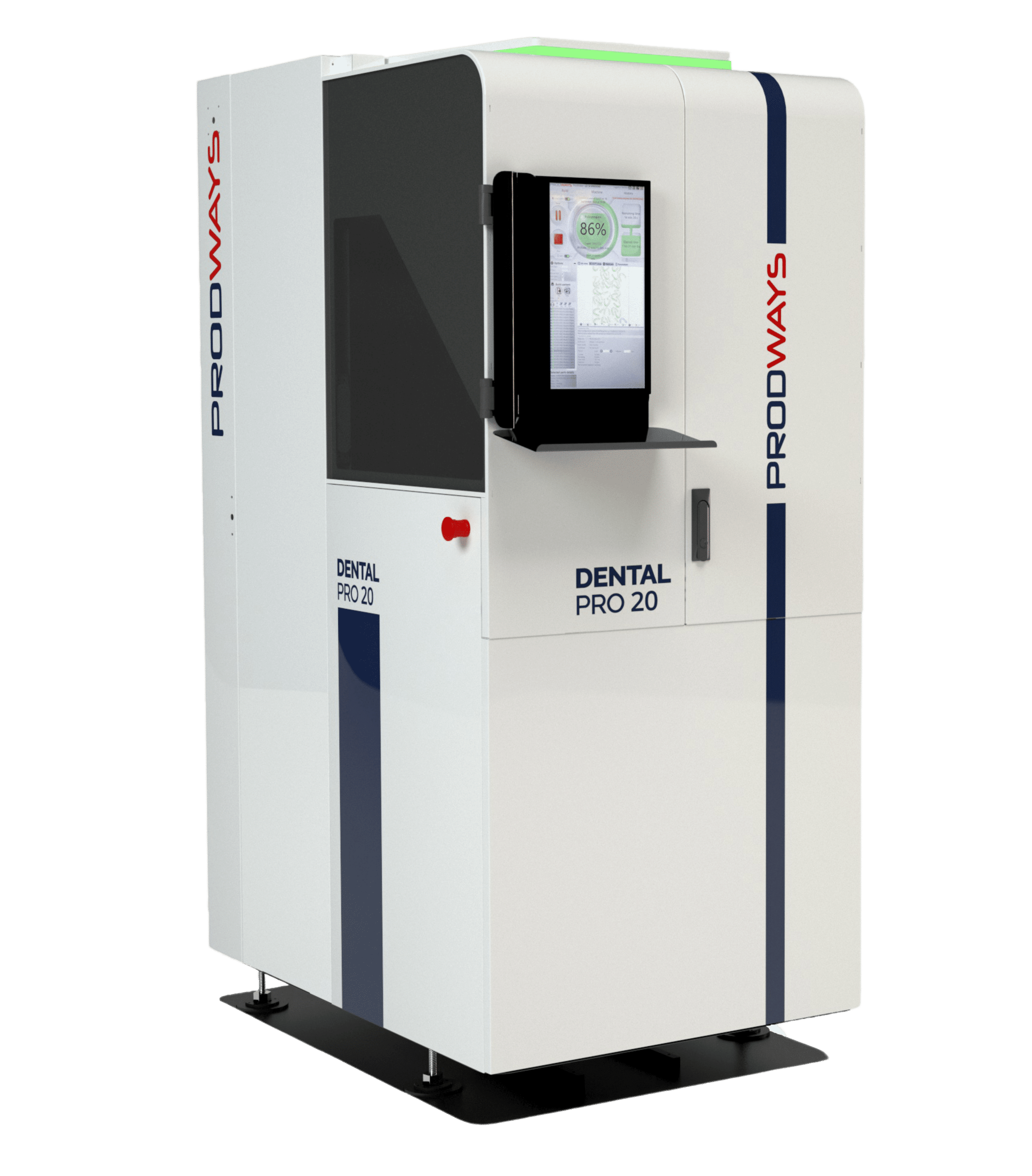

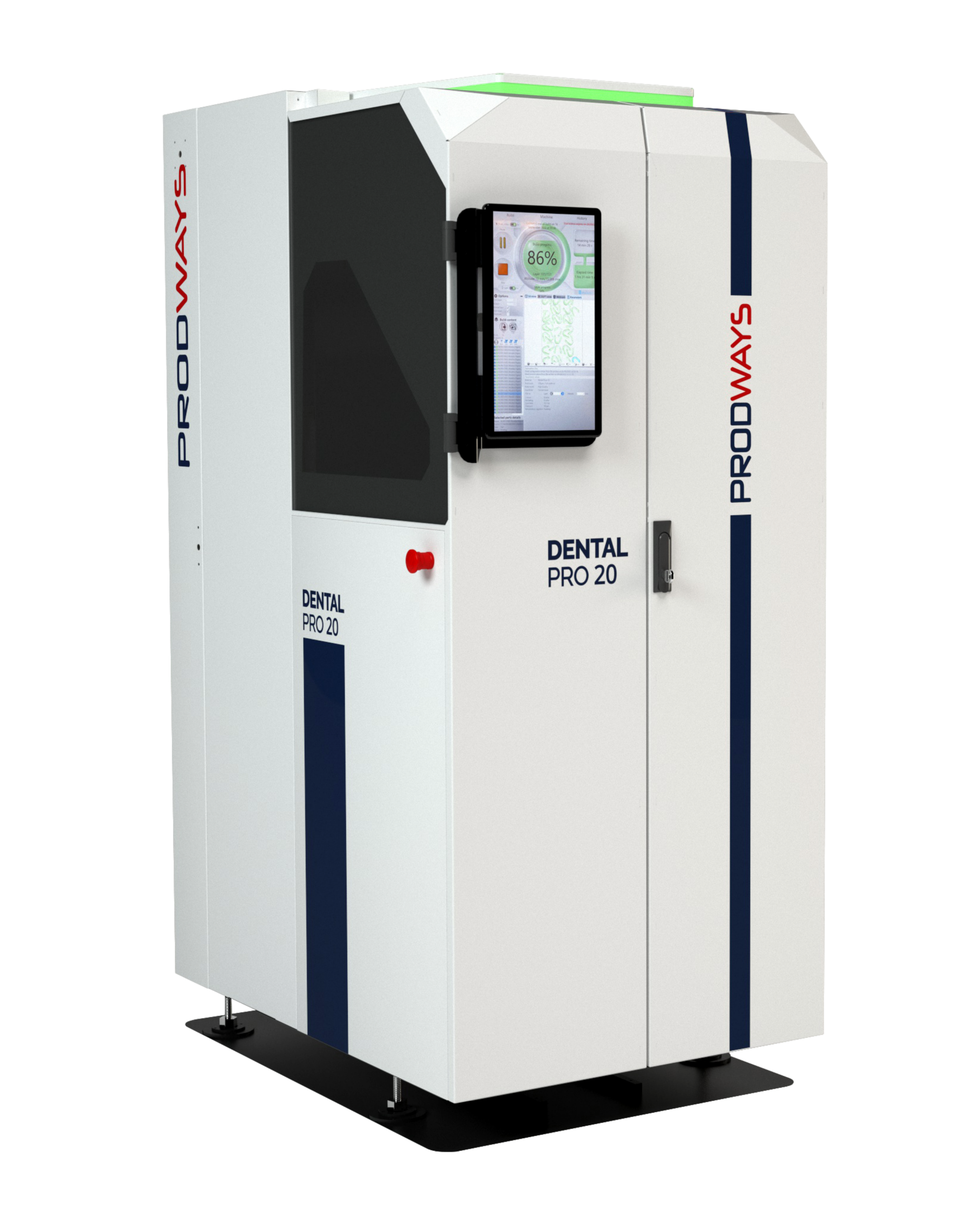

Design: A large, floor-standing cabinet with a clean white finish, accented by vertical navy blue stripes and the "Prodways" and "Dental Pro 20" branding. Interface: A tablet-style touchscreen is mounted on the front, currently displaying a print progress of 86%. Structure: It features a large viewing window on the left side and a dual-door front access system. Safety & Stability: A prominent red emergency stop button is visible on the front, and the entire unit sits on adjustable leveling feet.

Key Features & Benefits

Advanced Curing Power

Equipped with 385 nm UV-LED technology, the DENTAL PRO 20 provides enhanced curing power, ensuring high precision and fast solidification of resin for consistent, high-quality results.

Faster Production

The DENTAL PRO 20, with its dual DLP® heads, allows for even faster 3D printing—up to 40% quicker—significantly reducing production time for dental models and boosting overall laboratory efficiency.

Get a quote

DENTAL PRO 20 Specifications

Number of DLP® Heads

2 (up to +40% faster)

Technology

UV-LED DLP®, 385 nm wavelength

Applications

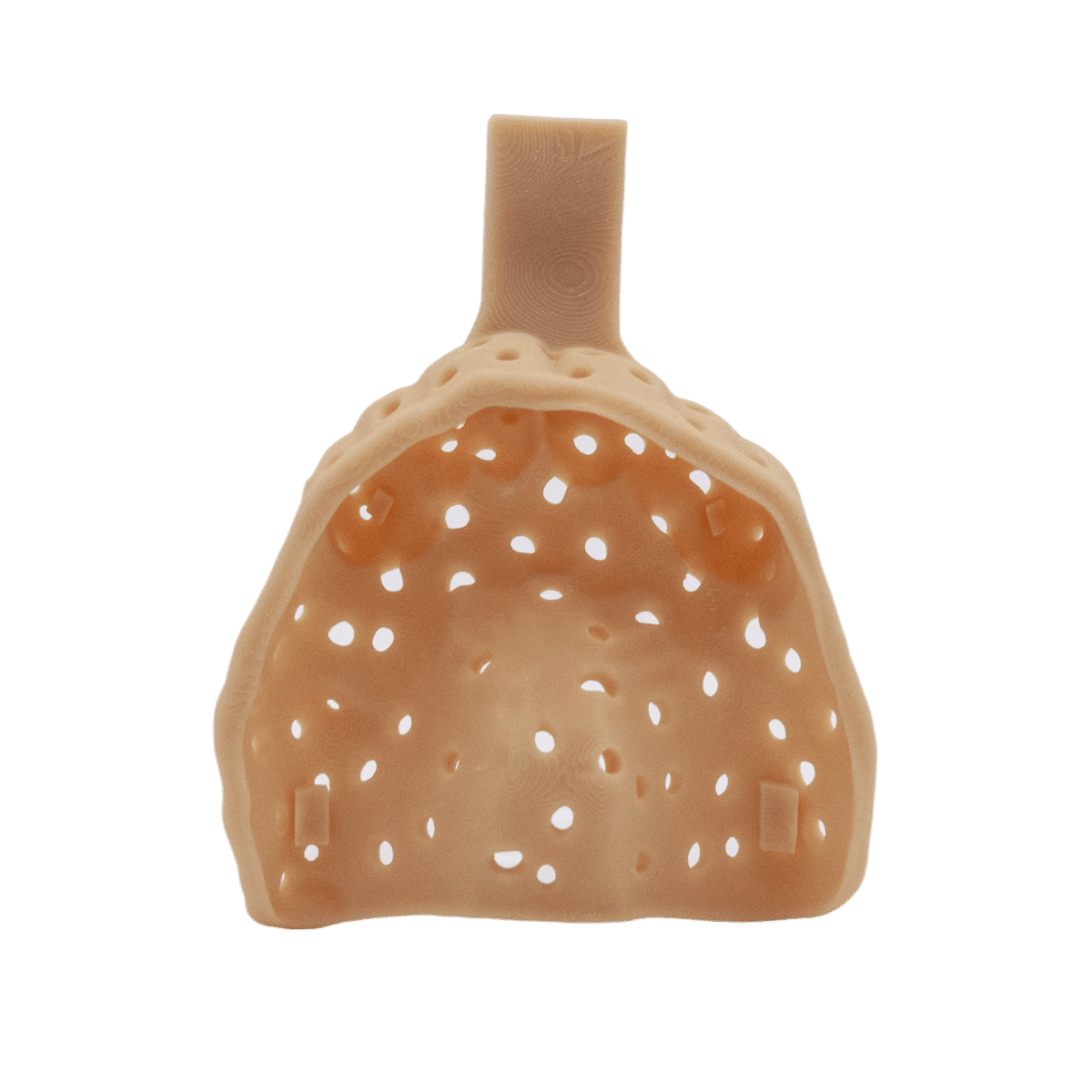

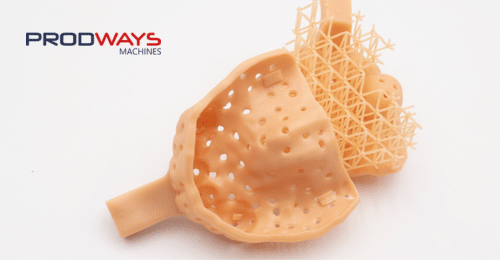

Aligners Models, Crown & Bridge models, Trays, Orthodontics & Implantology models

Materials Qualified

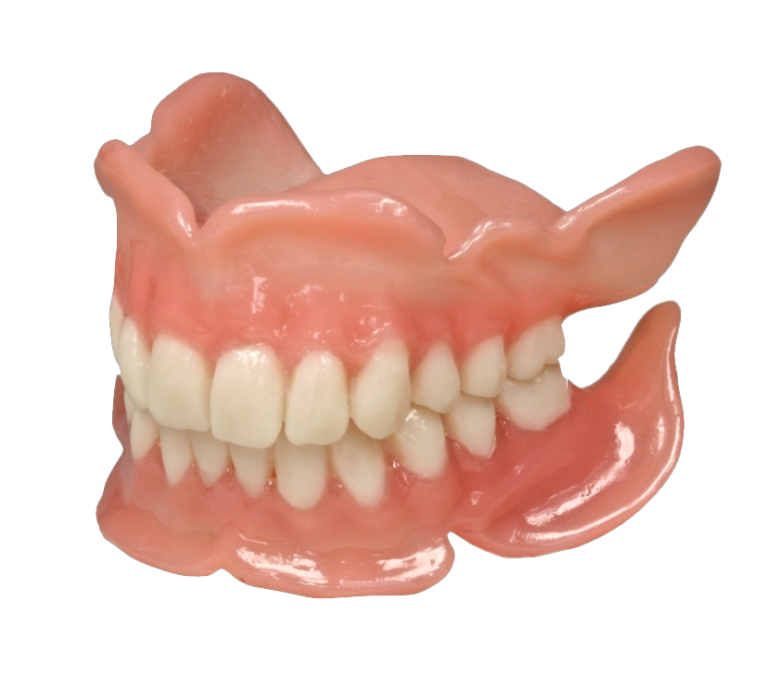

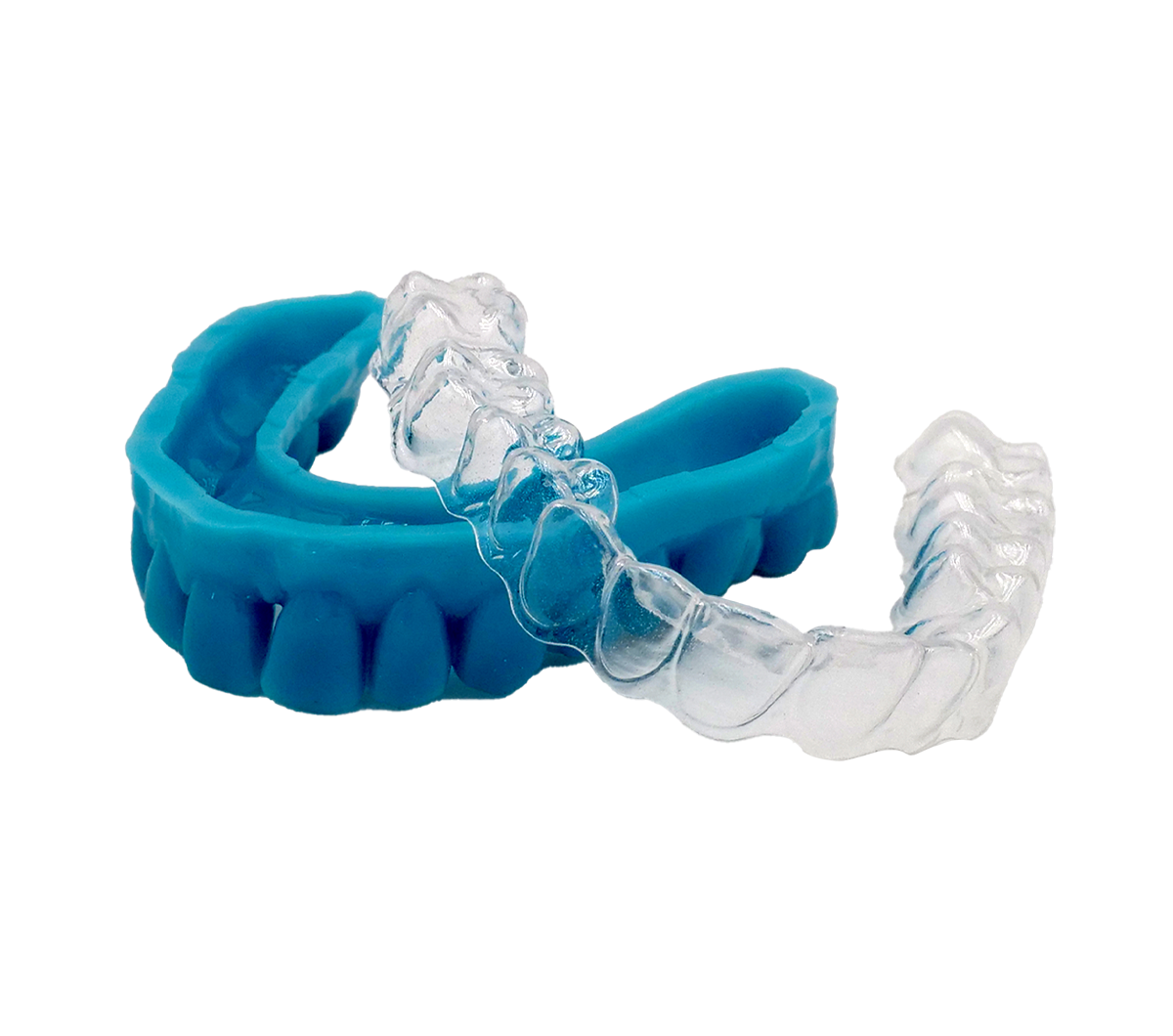

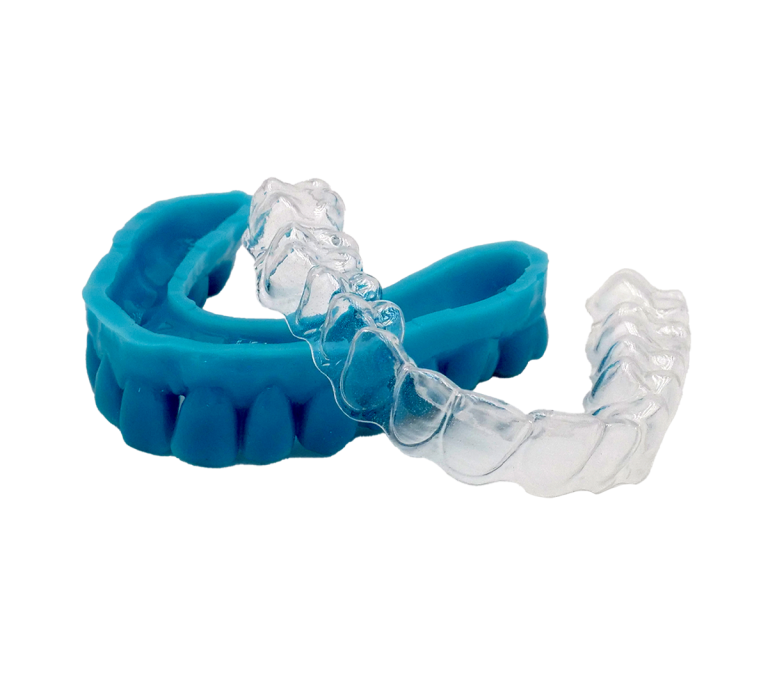

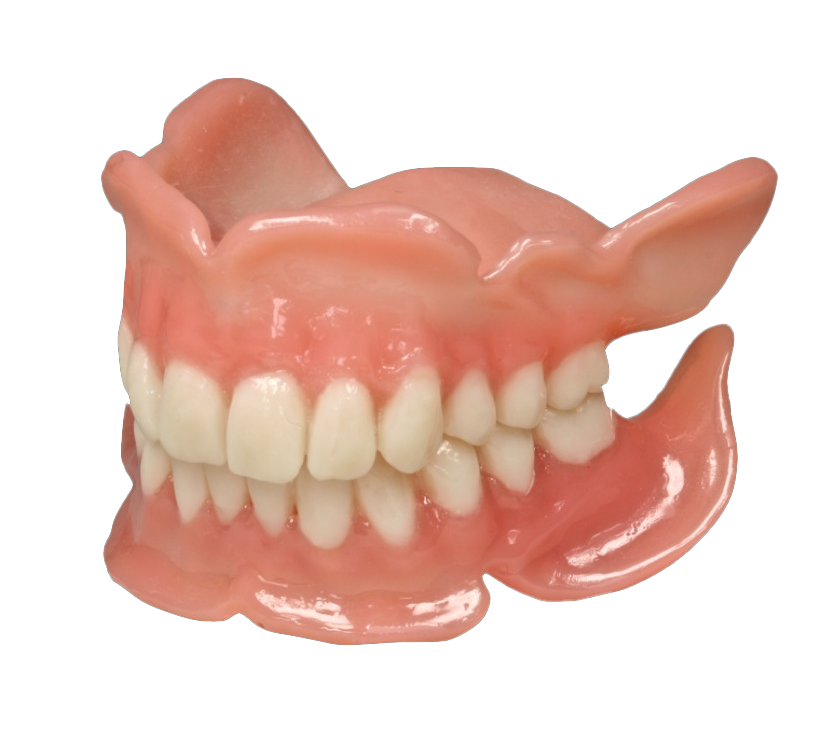

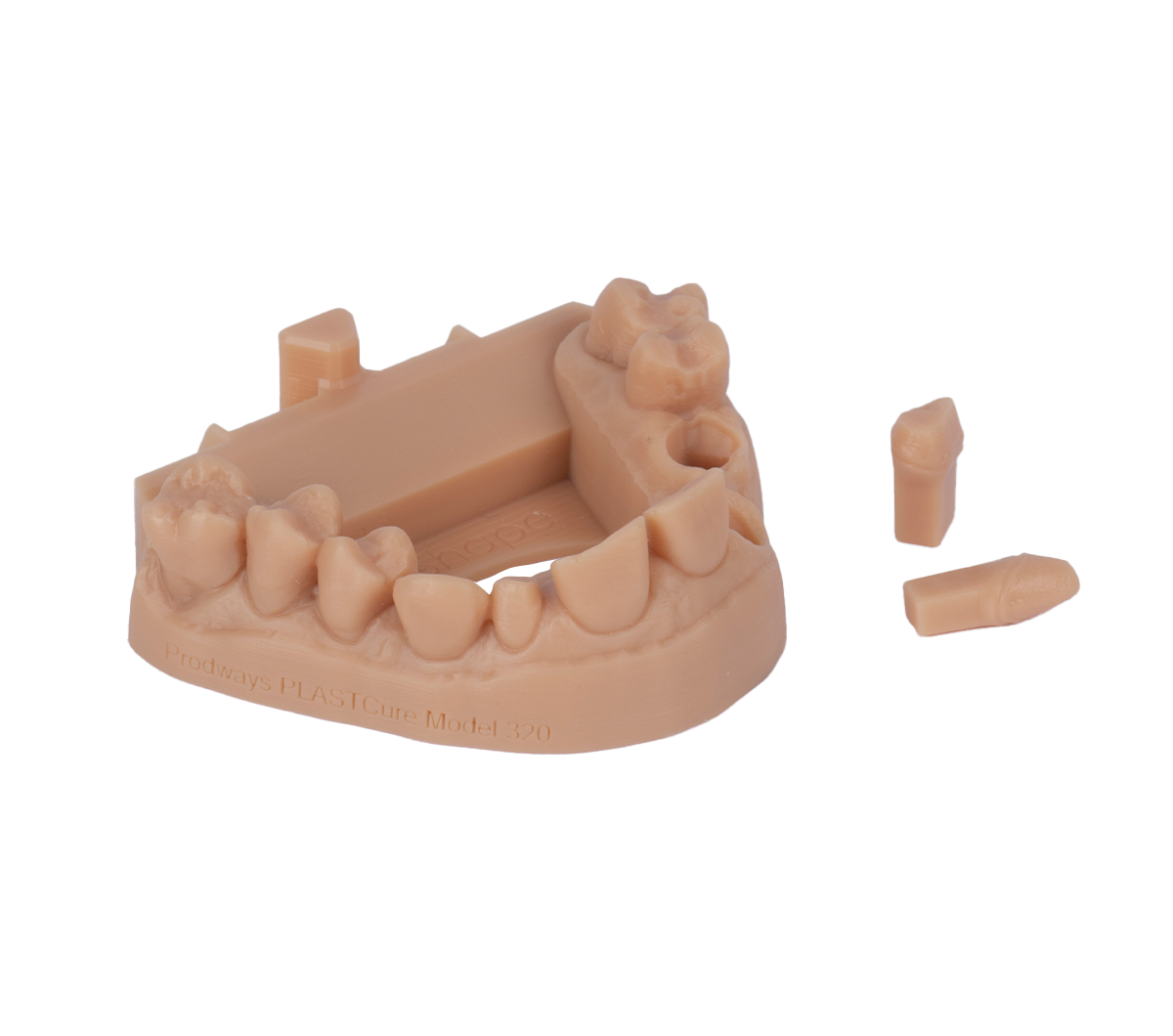

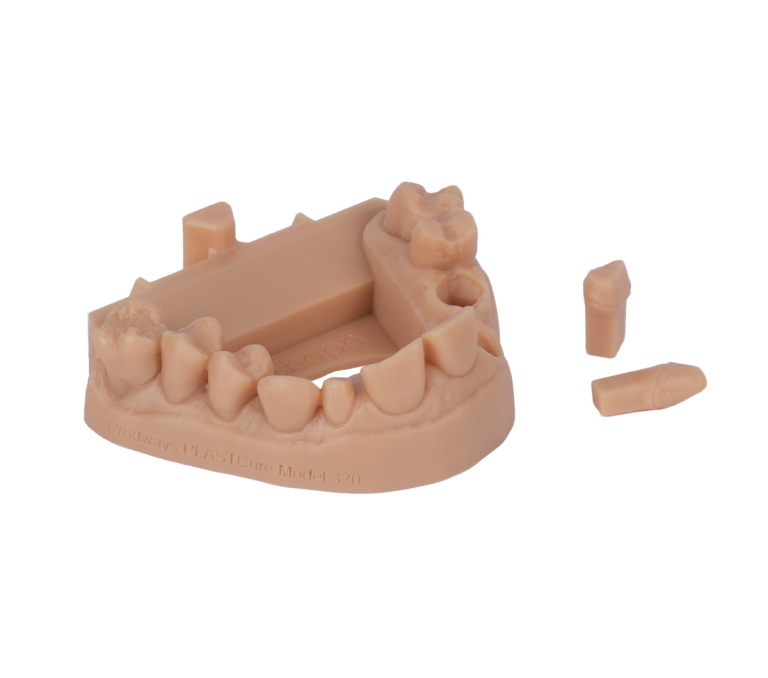

Absolute Aligner, Provivic Denture Base, PLASTCure Modele 300/310/320 (non exhaustive list)

Light Power **

90 mW / cm²

Max. Build envelope size (LxWxH)

300 x 445 x 2350 mm | Customizable configuration possible based on needs

Native pixel size (X, Y)

42 μm (0.0016 inches)

Layer thickness*

50 – 175 μm (0.001 to 0.006 inches)

Platform type

Granite, perforated or metal platform

Printer size (LxWxH)

855 x 1100 x 1780 mm | 33.7 x 43.3 x 70.1 inches

Weight

510 Kg | 1125 lbs.

Power requirements

210 – 240 VAC, 8-12A, 50/60 Hz

Download Data Sheet

*Please note that this data is contingent upon factors including but not limited to part geometry, build style, and material. Variations in these elements may affect outcomes.

**All technical characteristics, specifications, and data provided in this document are non-binding and subject to individual use cases and environmental conditions. Performance and results may vary based on these factors.
